RESPA-CF2 Powered Precleaner, Filter & Pressurizer
The RESPA®-CF2 is the most advanced cab and enclosure Air Quality System available, delivering a powered precleaner, filter, and pressurizer in one compact, customizable unit. This innovation from Sy-Klone offers the highest quality of filtration and pressurization at the lowest costs. The cost-effective system extends the HVAC system maintenance intervals while dramatically extending filter life—which saves on filter and labor costs to the user. The powered precleaning technology allows cabs/enclosures to sustain positive pressurization, thus keeping particulate out.
The RESPA-CF2 comes in 12V and 24V models; with a compact or brushless motor; and standard or extended length configurations.
Compatible RadialSHIELD air filters available separately. (Odor+HEPA in standard length only. Gas+HEPA and Ammonia+HEPA in extended length only.)
Benefits:
- Unique ruggedized design
- Flexible design to accommodate installation and application needs:
- Standard and extended length models
- Brushed and brushless motors
- Adjustable outlet and ejection port direction
- Corrosion-resistant fan blade
- Filtration option for any application
- Radial seal design eliminates the possibility of seal leakage
- Integrated pressure tap
- RESPA IQ valve compatible, when paired with RESPA Advisor+ 2.0 monitor, to actively regulate cabin pressure and CO2 buildup
Mounting:
- Horizontal, Vertical (Rain cap end up)
Precleaning Efficiency:
- ≥90% @ 5 μm in normal operating range
Operating Parameters:
- Ideal operation range: 0-130 CFM (0-3.68119 m/m)
- Extended operation range: up to 250 CFM (7.07921 m/m)
- Operation temperature: -40° C to +85° C (-40° F to 185° F)
continuous; +100° C (215° F) short exposure. 288W initial start-up, 144W constant
Construction:
- Glass-filled injection molded polypropylene exterior; metal fan blade; available 12V or 24V DC motor
with sealed housing and sealed ball bearings (CF)

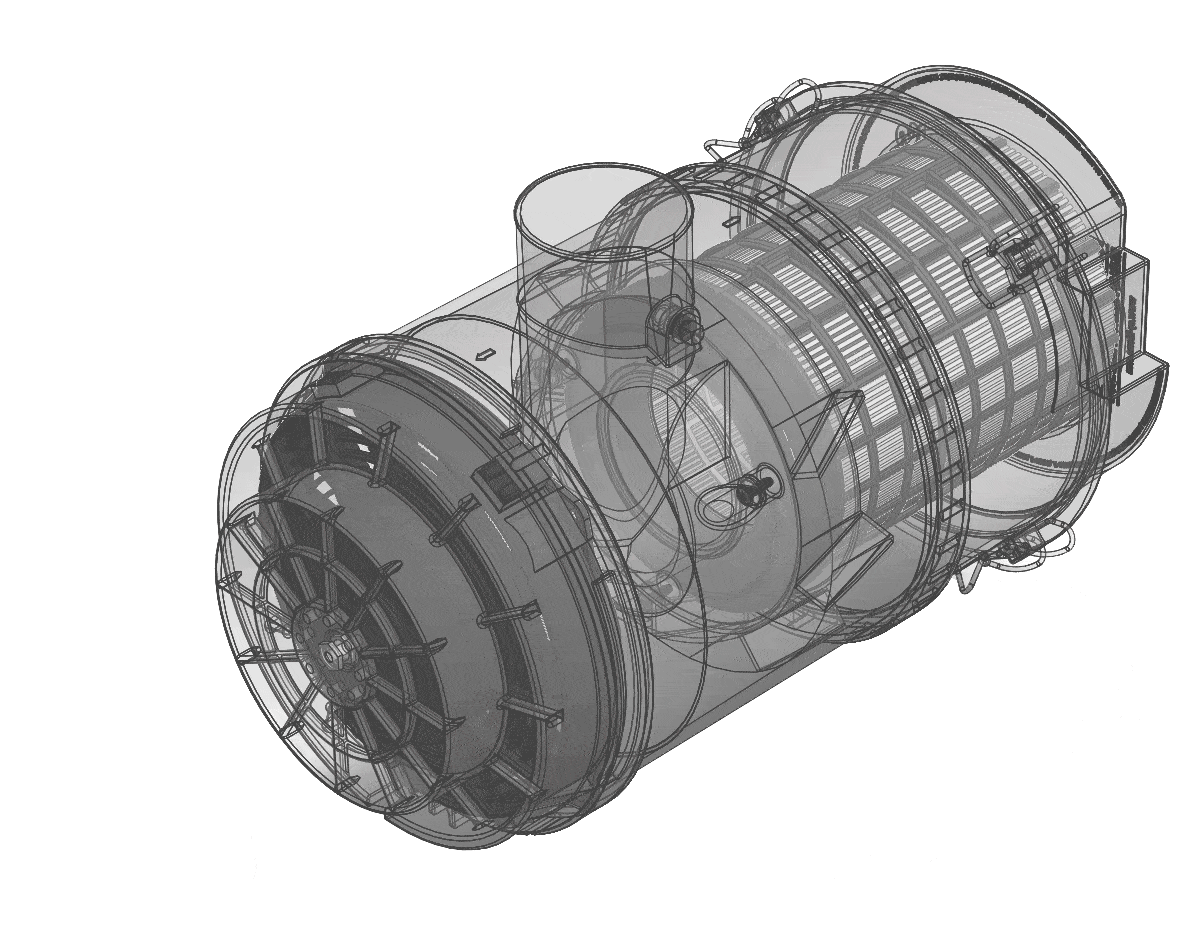

How it Works: The Sy-Klone Effect
Downloads
Resources Available
- Quick Start Guides
- Installation Guides
- Schematics and Technical Drawings
- Operation Manuals

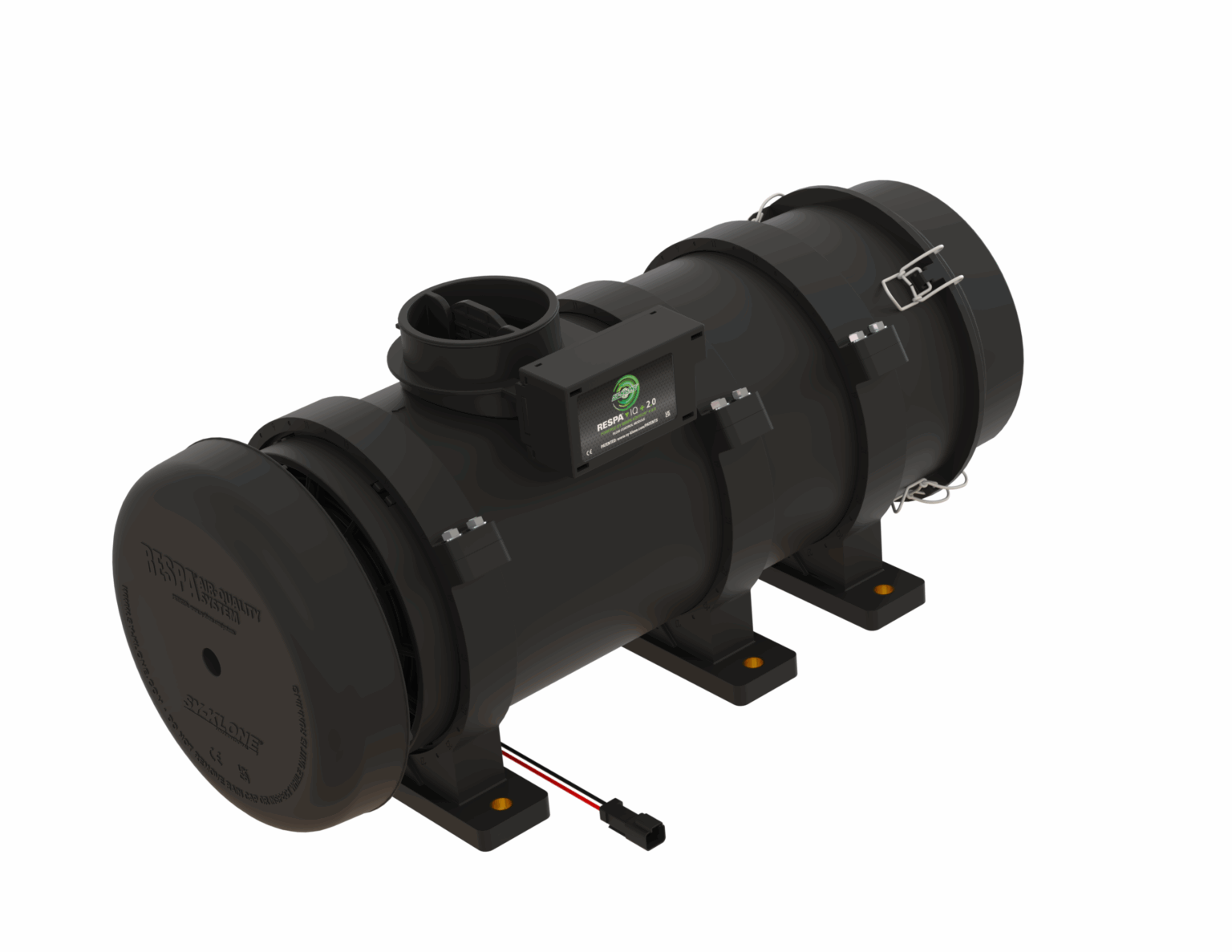

NEW! RESPA® IQ

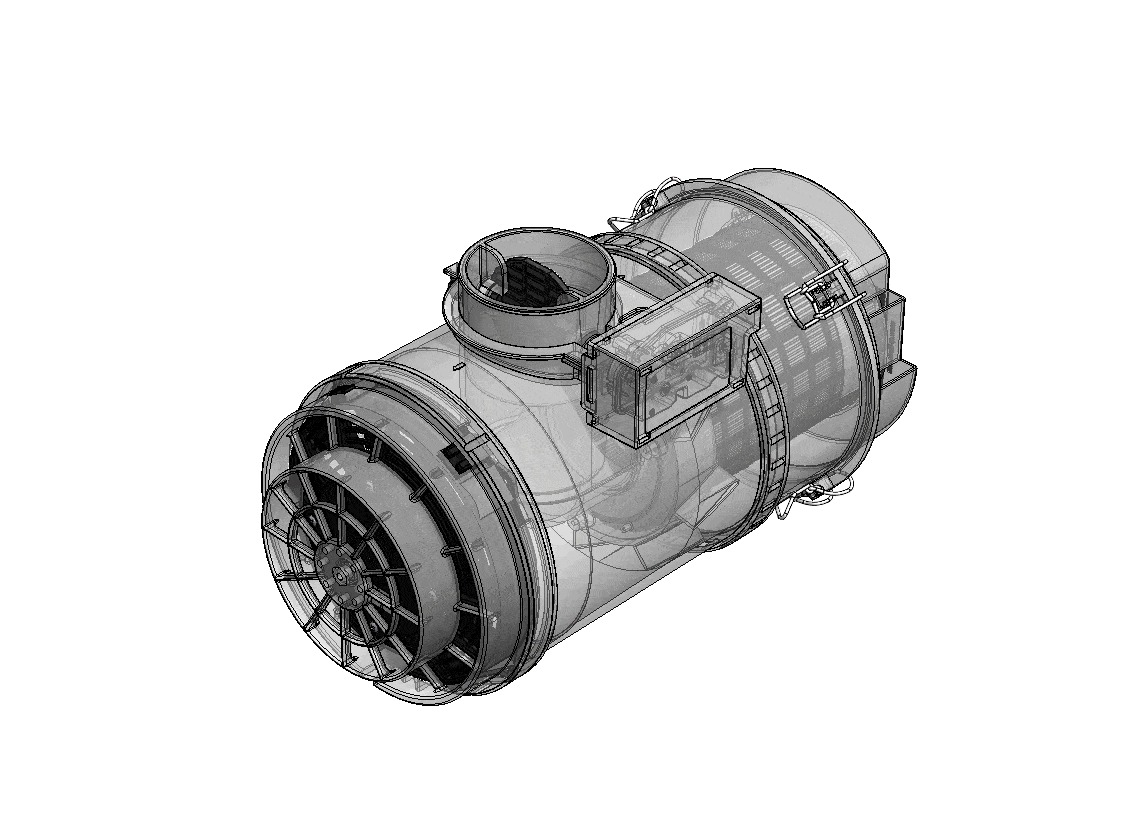

The IQ valve is a motorized actuator assembly designed for the RESPA-CF2 powered precleaner and pressurizer unit fitted with a 4″ outlet. RESPA IQ works in conjunction with RESPA Advisor+ 2.0 to constantly monitor and regulate pressure inside the cab. IQ is available pre-built into new RESPA-CF2 units or as an upgrade assembly to existing CF2 units. (System requires 4″ outlet housing and RESPA Advisor+ 2.0 monitor for operation.)
Talk to your representative about purchasing.
How it works
RESPA IQ works in conjunction with the RESPA Advisor+ 2.0 to constantly monitor and regulate pressure and CO2 levels inside the cab.
When the monitor detects excessive pressure or elevated CO2 levels, the RESPA IQ valve opens to allow more fresh air into the HVAC system.
Once safe operating levels are restored, the valve closes to maintain positive pressure and promote recirculation for optimal filtration, per ISO 23875 specifications.
