Real-Time Monitoring
RESPA Advisor+ 2.0 Monitor
See the unseen threats that can put your operators at risk:
Low Pressure
When HVAC performance is degraded by dirt in the system, cab pressure commonly falls below ambient pressure and harmful particulate is drawn into the cab.
Dust
Long-term exposure to harmful respirable particulate such as silica, asbestos, and coal dust can cause irreversible, incurable diseases such as silicosis, mesothelioma, and more.
Elevated CO2 Levels
As the operator exhales in a small, enclosed space, carbon dioxide levels can rise quickly, especially with HVAC in recirculation mode. High levels can lead to accidents from fatigue, drowsiness and sudden sleep.
Control these threats with a 3-part RESPA Cab Air Quality System:
- RESPA-CF2 precleaner/filter/pressurizer
- RESPA Pure, PFX, or CFX2 High-efficiency recirculation filtration
- RESPA Advisor+ 2.0 Pressure, Dust, and CO2 monitor
RESPA Advisor+ 2.0 Benefits:
- ISO 23875-Compliant
Meets ISO 23875 performance requirement for real-time operator cab monitoring, including stringent CO2 sensor specifications. - Cab Pressurization
The monitor reports cab pressurization levels in real-time to support a controlled air-quality environment. - Advanced CO2 Monitor
Not all CO2 sensors are created equal. The RESPA Advisor+ includes a nondispersive infrared sensor (NDIR), as specified in ISO 23875, to provide real-time CO2 data to alert operators when unsafe air quality conditions exist. - Dust Indicator
Alerts operator to excessive dust levels in the cab. - Interactive LCD Display
Full-color, interactive, LCD touchscreen is easy to use and quick to learn, making it seamless to integrate into the job site. - Audible and Visual Alarms
Built-in alarms alert the operator when pressure, dust, or CO2 levels go outside of the allowable threshold. - At-a-Glance Dashboard
View pressure, CO2, dust levels, filter information, and other settings in a numerical rather than analog display. - Filter-Life Tracking
Take the guess work out of filter life, with manual filter tracking to ensure optimal filter life and performance. - Downloadable Data
Gain insights into the operator cab environment with data logging at an interval you specify. Download the data via USB for analysis. - CAN Output
SAE J1939 CAN output available for telemetry systems. Contact Sy-Klone for details. - Customizable Settings
Admin settings can be configured to suit your needs. Metric and imperial pressure units, high and low pressure thresholds, dust threshold, CO2 limits, alarm behavior, data sampling intervals for logging, and more. - Designed for Cab Environment
The small size and dark color scheme blends into any operator cab environment, while the matte surface texture eliminates fingerprints and glare, a potential visual safety concern. - Ready for Jobsites Worldwide
Symbol-based interface for ease of use for all users, regardless of native language, with metric and imperial units of measure.
RESPA Advisor+ 2.0 Specifications
- Voltage: 12-24 VDC
- Under-voltage protection @ 10 VDC
- Over-voltage protection @ 36 VDC
- Reverse-polarity protection
- Current Consumption: ~1 mA
- Operating Temperature Rating: -10°C to 60°C (14°F to 140°F)
- Storage Temperature Rating: -55°C to 125°C (-67°F to 257°F)
- Operating Pressure Range:
- 0 to 500 Pascal (Pa)
- 0 to 2 Inches-H2O
- Operating CO2 Range: 0 to 2500 ppm
- Pressure Display Resolution: 1 Pa (0.01 Inches-H2O)
- Weights and Dimensions:
- Monitor: 238g (8.4oz)
164.9 x 75.3 x 54.6 mm
6.49 x 2.96 x 2.15 inches - Control Module: 674g (23.8oz)
203.2 x 139.7 x 70.5 mm
8 x 5.5 x 2.78 inches
- Monitor: 238g (8.4oz)
- Pressure Port Tubing: black tube 3.2mm x 244cm (1/8 in x 8 ft)
- Connectors: Deutsch

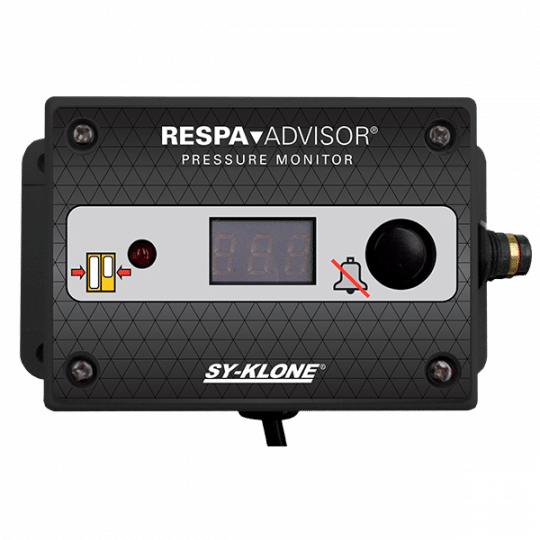

RESPA Advisor® Pressure Monitor
The RESPA Advisor Pressure Monitor for 12 and 24 volt systems is the third component which makes up the RESPA Cab Air Quality System. {Replaces KT-CABPRES-EL1-ENG}
- 5V variable output signal can be used for remote monitoring systems.
- Units can be set to Pascal (Pa) or inches of water column.
- Audio Alarm can be set to on or off; if engaged, volume can be adjusted.
- Realtime pressure read out.
- Easy to install.
For ISO 23875 compliance, see RESPA Advisor+ 2.0 Monitor.
For purchasing, please contact your representative.

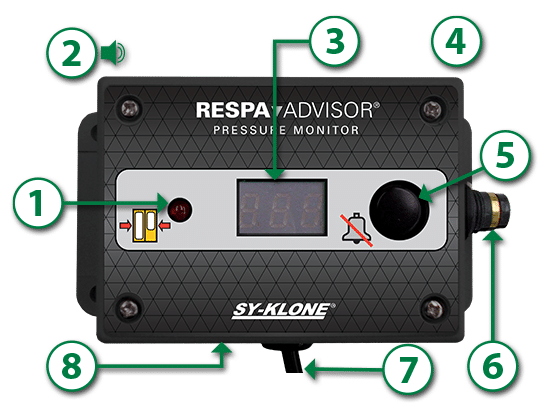

1 | LED Alarm: The lighted indicator illuminates whenever the cab pressure drops below the preset minimum threshold for more than ten seconds. This feature cannot be disabled. The ten second delay allows for normal door opening and closing without setting off the alarm. |
2 | Low Pressure Signal Alarm: This feature is internal in all units. It can be activated or deactivated during setup, and the volume level can also be adjusted to suit the environment. If the feature is activated, the alarm will sound whenever the cab pressure drops below the preset minimum pressure level for more than ten seconds. It automatically self-resets when the cab pressure returns to normal or when a off/on power cycle is completed. |
3 | Numeric Display: This indicates the real-time pressure in the cab. During setup, you can select whether to display units in inches of water column or in Pascal. |
4 | Power: The unit operates whenever the machine is switched on. There is no separate power switch to turn the Pressure Monitor on or off. |
5 | Silence Alarm Button: Sometimes it is necessary to open a window or door for more than ten seconds. This will set off the alarm. The alarm signal can be silenced by pushing the button. (Note: the light will remain on until pressure is restored.) The alarm mode is self-resetting when the cab pressure normalizes or with an off/on power cycle. The alarm is again armed and will sound after a ten second pressure drop. |
6 | Quick Connect Fitting: The included air line, which provides ambient air pressure from outside the cab, attaches here. |
7 | Electrical Wiring: Connects to any convenient DC voltage connection between 9 VDC and 36 VDC, so the same unit can be installed on a 12-volt or 24-volt system. |
8 | Low Voltage Pressure Signal Port: The unit includes a 0 to 5 volt output signal that can stream real-time pressure information to an on-board computer. The 1/8-inch mono-plug signal port puts out a low power voltage signal that varies with the pressure reading. See Technical Specifications for details. |
Technical Specifications:
- Operating Pressure Range: 0 to 0.8 Inches H2O (0 to 200 Pa)
- Display Resolution: 0.01 Inches H2O (1 Pa)
- DC Input Voltage (self-resetting fuse): Minimum: 9V, Maximum: 36V
- Current Consumption: Less than 30 mA
- Operating Temperature Range: -40 F to 140 F (-40 C to 60 C)
- Enclosure Dimensions: 3.50 x 2.52 x 1.39 inches (88.9 x 64 x 35.2 mm)
- Mounting Plate Dimensions: 4.52 x 2.52 x 0.11 inches (114.8 x 64 x 2.8 mm)
- Weight: 0.2 oz. (175 g)
- Air Tube: 3/16 inches OD; 6 foot length (1.8 m)
- Default Settings (as shipped from Sy-Klone):
- Sound: On
- Volume: Full volume
- Digital display units: Inches of H20
- Alarm threshold: 0.08 inches H20 (20 Pa)
- Low Voltage Pressure Output Signal:
- 0V @ 0 Inches H2O (0 Pa)
- 5V @ 0.8 Inches H2O (200 Pa)
- 20 mA

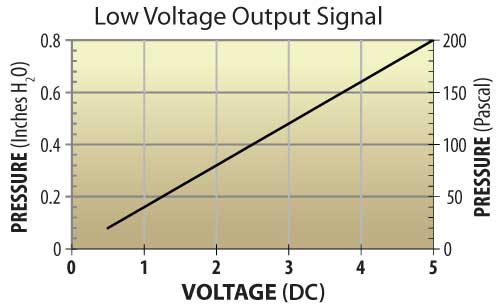

This low voltage output signal chart can be used to calibrate real-time pressure data when sent to a computer or telemetric system.
RESPA Advisor Information
Resources Available
- FAQ
- Quick Start Guides
- Installation Guides
- Operation Manuals
